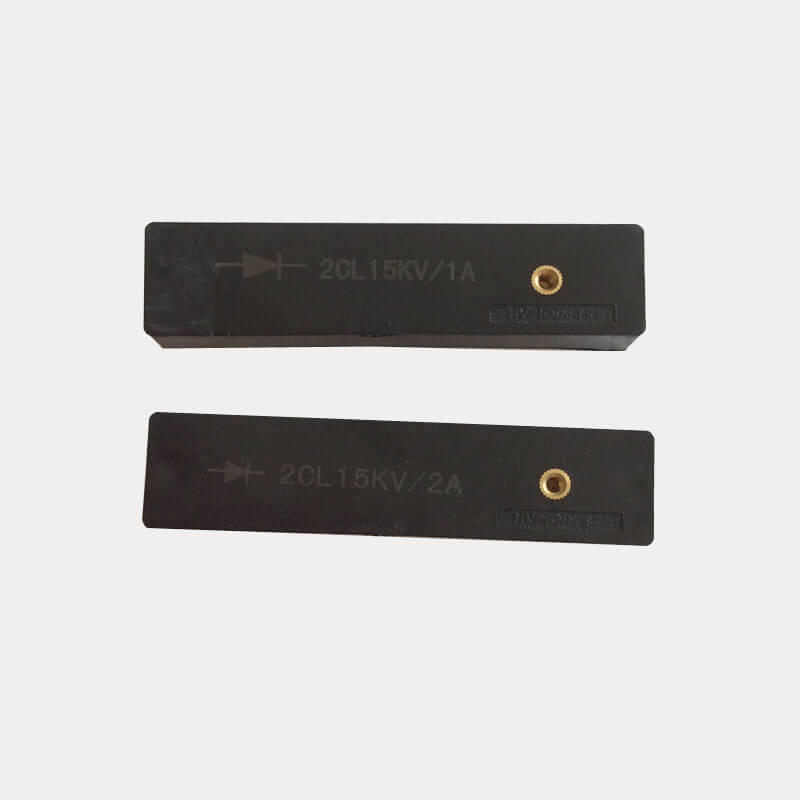

15KV 2A High Voltage Microwave Diode
We're here to help: Easy ways to get the answers you need.
Application of 15KV 2A High Voltage Microwave Diode::
This 15KV 2A high voltage microwave diode is used for microwave drying, sterilizing and heating equipment.
Maximum rating of 15KV 2A High Voltage Microwave Diode
| Parameter Name | Marks | Test condition | Test value | Unit |
| Repetitive peak inverse voltage | VRRM |
|
15 | KV |
| Average forward rectified current | IO |
|
2.0 | A |
| The non repetitive peak surge current
|
IFSM | Ta=25℃, rated load, half-wave, single phase 20KHZ | 80 | A |
| Tj Operating Junction Temperature Range | Tj | Sine half wave voltage | 150 | ℃ |
| Environment temperature during working | Tc |
|
120 | ℃ |
| Storage temperature | Tstg |
|
-40-120 |
℃
|
Electrical specification of 15KV 2A High Voltage Microwave Diode::
