Air cooling LG magnetron 2m278-04

We're here to help: Easy ways to get the answers you need.

Product Introduction::

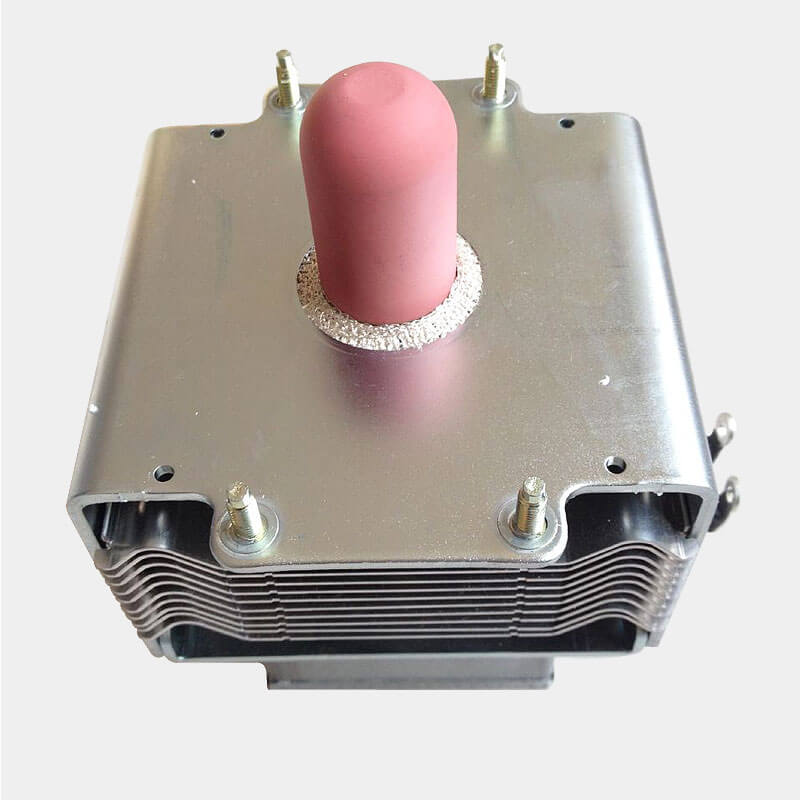

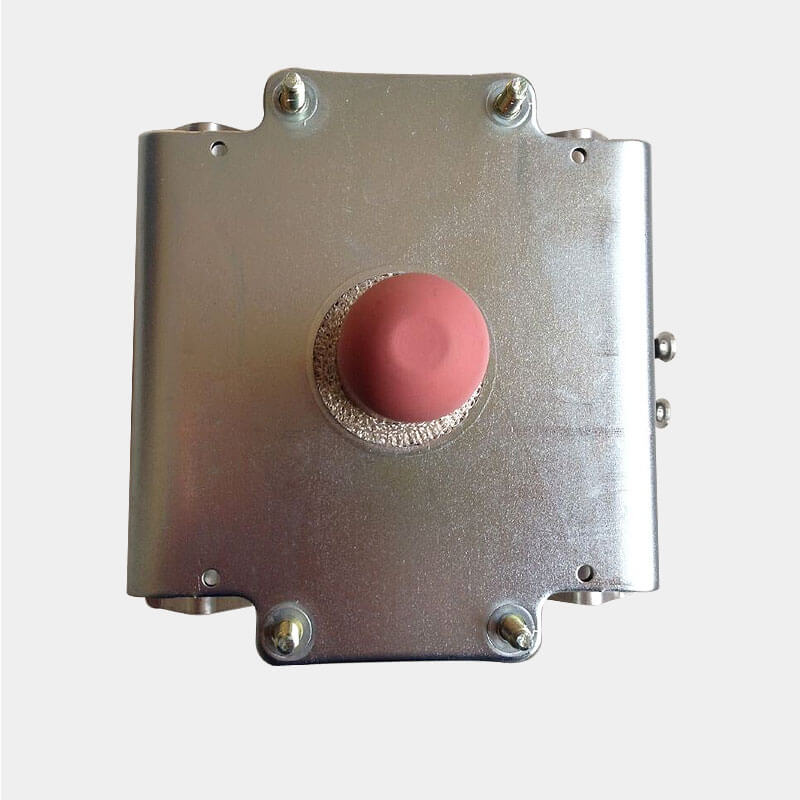

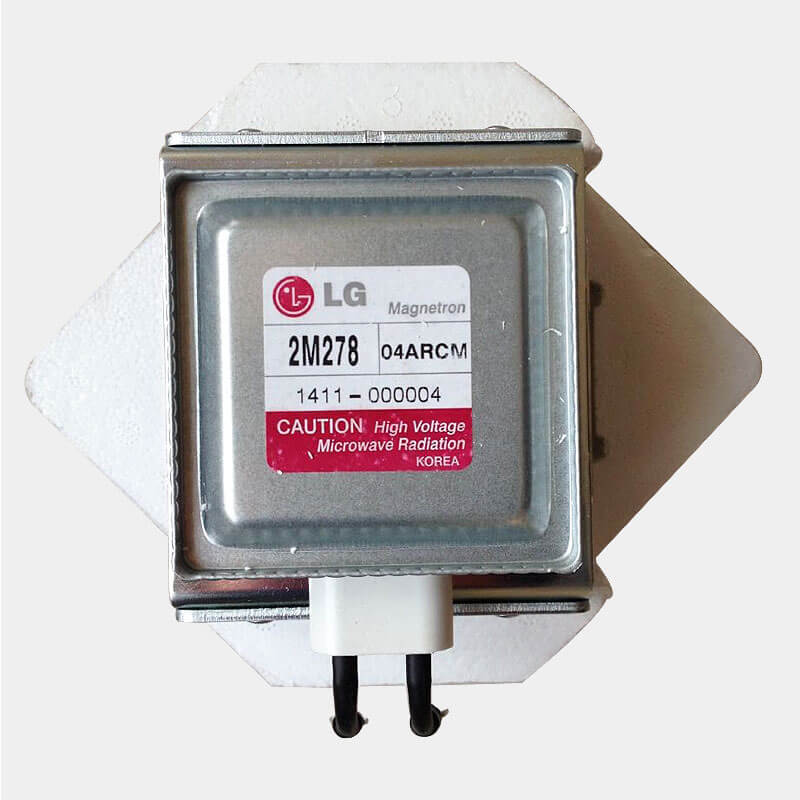

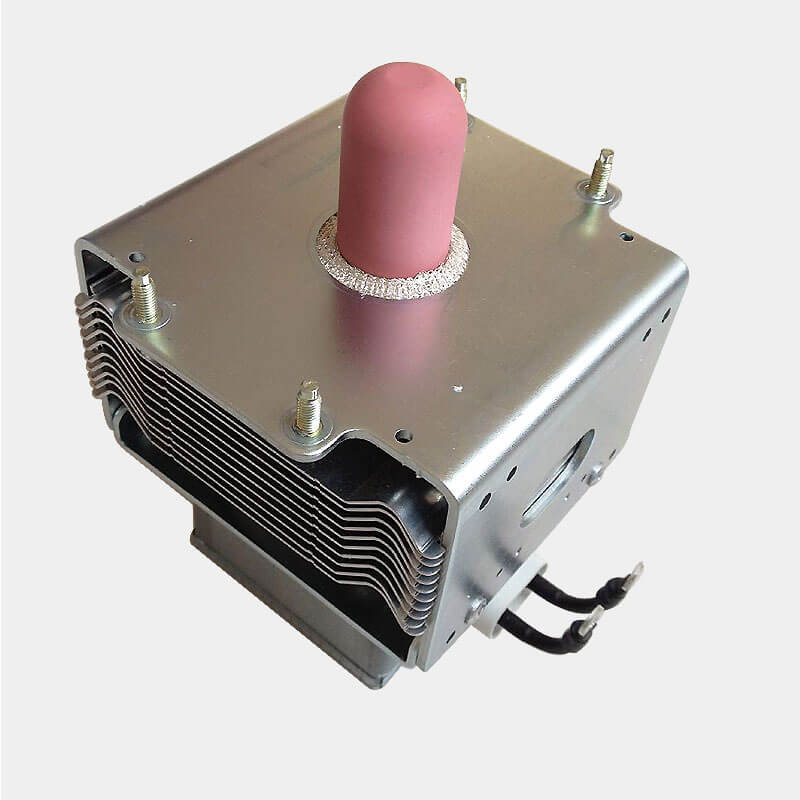

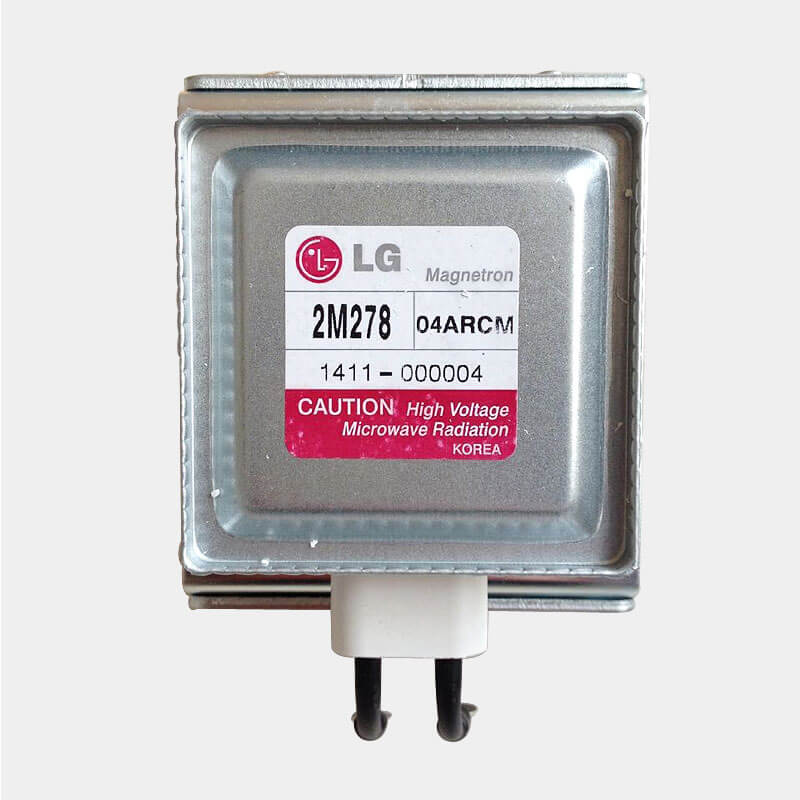

Air cooling LG magnetron 2m278-04 is imported from South Korea, there are two cooling ways, air-cooled and water cooled. Suitable for all kinds of industrial microwave equipment.

Specific parameters:

Model: 2M278-04ASCM

Power: 2455Mhz

Filament voltage: 4.3V

Anode current: 730mA

Filament current: 19.5A

Weight: 2.29kg

Life: 2000 hours

Dimension: 118mm*100mm*180mm

Fixed direction: Fixed screw holes vertical to the terminal

Fixed hole center distance: 48mm*115mm
